Medium Duty Storage Rack Advantages:
Easy to adjust; beam height can be adjusted to meet needs.
Cost-effective—low initial investment cost, increasing warehouse/workshop storage capacity and efficiency.
Allows quick and direct access to goods on each level of four or more shelving units.
Safety details for safe use: All edges and corners are rounded and polished to prevent scratches during handling and installation.

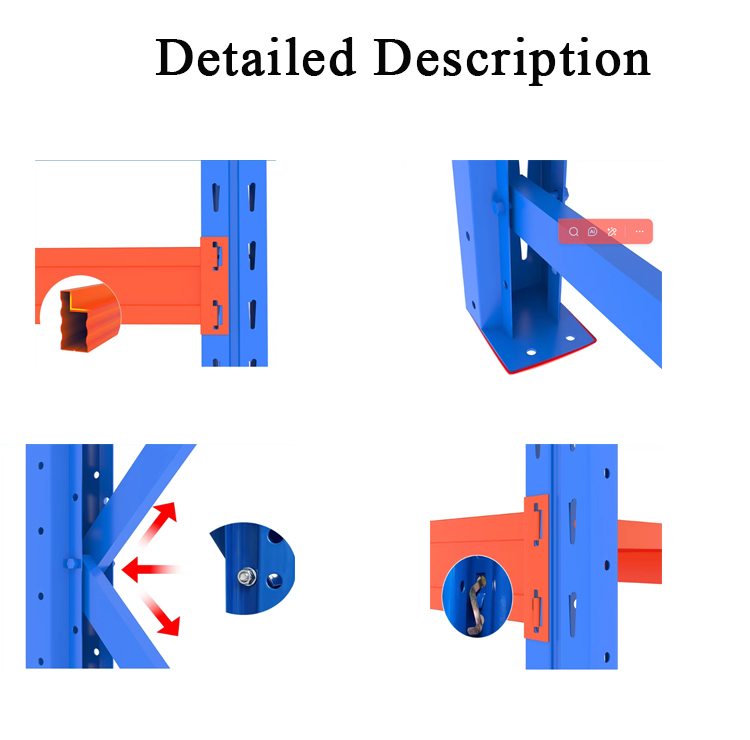

Detailed Description:
- The crossbeam's grooved design increases load-bearing capacity by 30%. The bending process creates a multi-directional support structure, preventing plastic deformation or breakage under heavy loads.
- Compatible with uneven ground, adaptable to various scenarios. The lack of footplates allows for leveling via the bottom, preventing instability caused by uneven surfaces.
- The uprights feature a triangular reinforced structure.
- The diamond-shaped hole design and locking pins increase safety, distribute stress more evenly, reduce the risk of localized pressure, and prevent the crossbeam from falling off.
Technical Parameters
Size：Length: 760/ 900 / 1000 / 1200 / 1500 / 1800 / 2000 mm
Width: 300 / 450 / 600 / 800 / 1000 mm
Height: 1200 / 1500 / 1800 / 2000 / 2500 mm
(Can Be Customized)
Loading Capacity :100 - 800 kg per layer
Layer：2-5 adjustable layers (Can Be Customized)
Use Area：Workshops, Small Retail Stores, Grocery Store Backrooms, Small Warehouses and other storage places
Structure：Knock down structure, easy assembling, convenient for delivery
Function：Product, material storage
Work Method：Goods stored on metal, wood and wire mesh panels

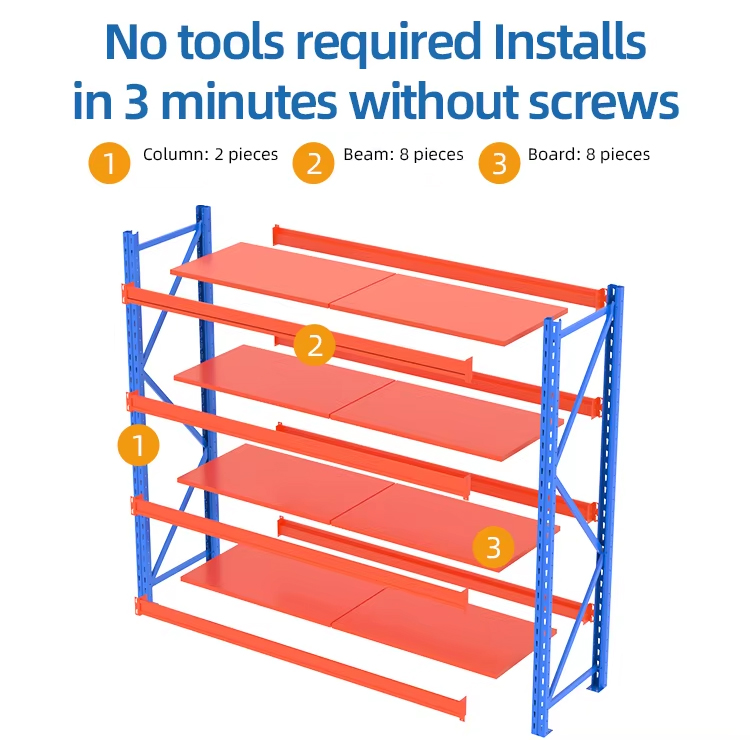

Installation & Maintenance Guide
Installation Steps
- Unpack and check all parts (columns, beams, laminates, safety pins, foot pads) for completeness.
- Assemble the two columns and beams: Align the beam buckles with the column holes and snap them firmly into place, then insert safety pins for fixation.
- Install laminates: Place laminates on the assembled beam frame, ensuring they are flat and stable.
- Install foot pads: Attach anti-slip foot pads to the bottom of the columns to adjust the level and enhance stability.
- Inspection: Check if all connections are firm, safety pins are in place, and the rack is level.
Maintenance Tips
- Distribute goods evenly across the shelves; avoid concentrated loading to prevent localized overloading.
- Avoid collisions with the shelves when handling goods; repair scratches promptly with anti-rust paint.
- Regularly check for loose connections (clips, safety pins) and tighten them as needed.
- Place the shelves in a dry, well-ventilated environment; avoid prolonged exposure to moisture or direct sunlight.
- Clean the shelf surface with a damp cloth; never use corrosive cleaning agents.
FAQ
Q1: Can the dimensions of medium-duty shelving be customized?
A1: Yes, we offer comprehensive customization services. You can specify the length, width, height, number of shelves, and load-bearing capacity according to your actual needs. Please contact our customer service with detailed requirements, and we will design a personalized solution for you.
Q2: Does the shelving require professional installation?
A2: No professional installation is required. The shelving features a tool-free, boltless design, and we provide a detailed installation manual and video tutorials. Most customers can complete assembly within 20-30 minutes with just 1-2 people. If you encounter any difficulties during installation, our customer service team is always ready to provide guidance.
Q3: Can multiple shelves be connected together?
A3: Yes, multiple shelves can be connected together. We provide connecting accessories to secure adjacent shelves, enhancing overall stability and creating a continuous storage area. This is especially suitable for large warehouses requiring centralized storage.

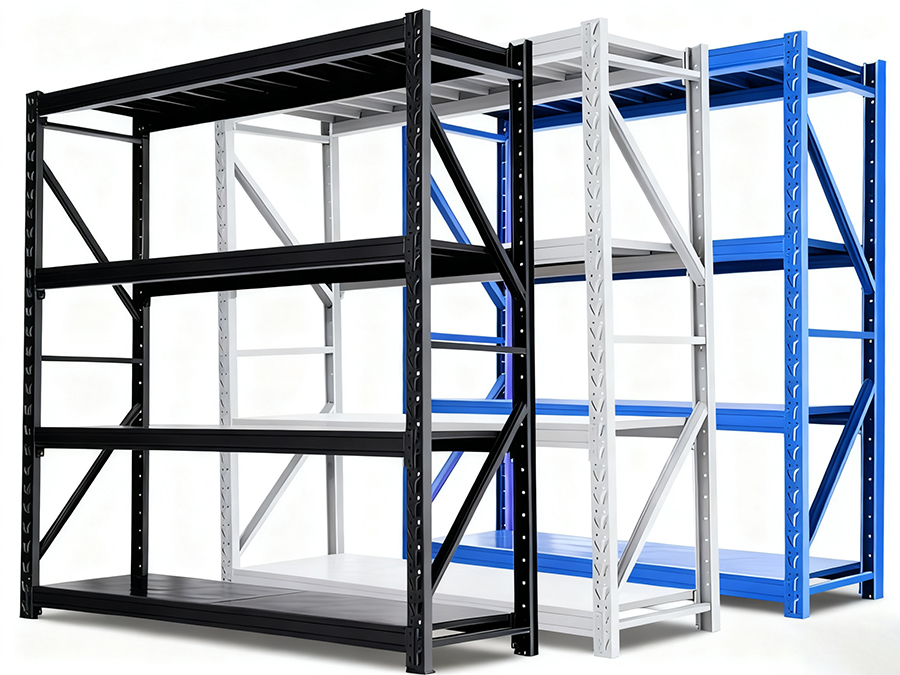

Q4: What colors are available?
A4: Our standard colors are blue, gray, black, white, and red. If you need other colors to match your environment (e.g., factory workshop, office space), we can provide a custom color service. You only need to provide a color swatch or color code, and we will adjust production accordingly.
